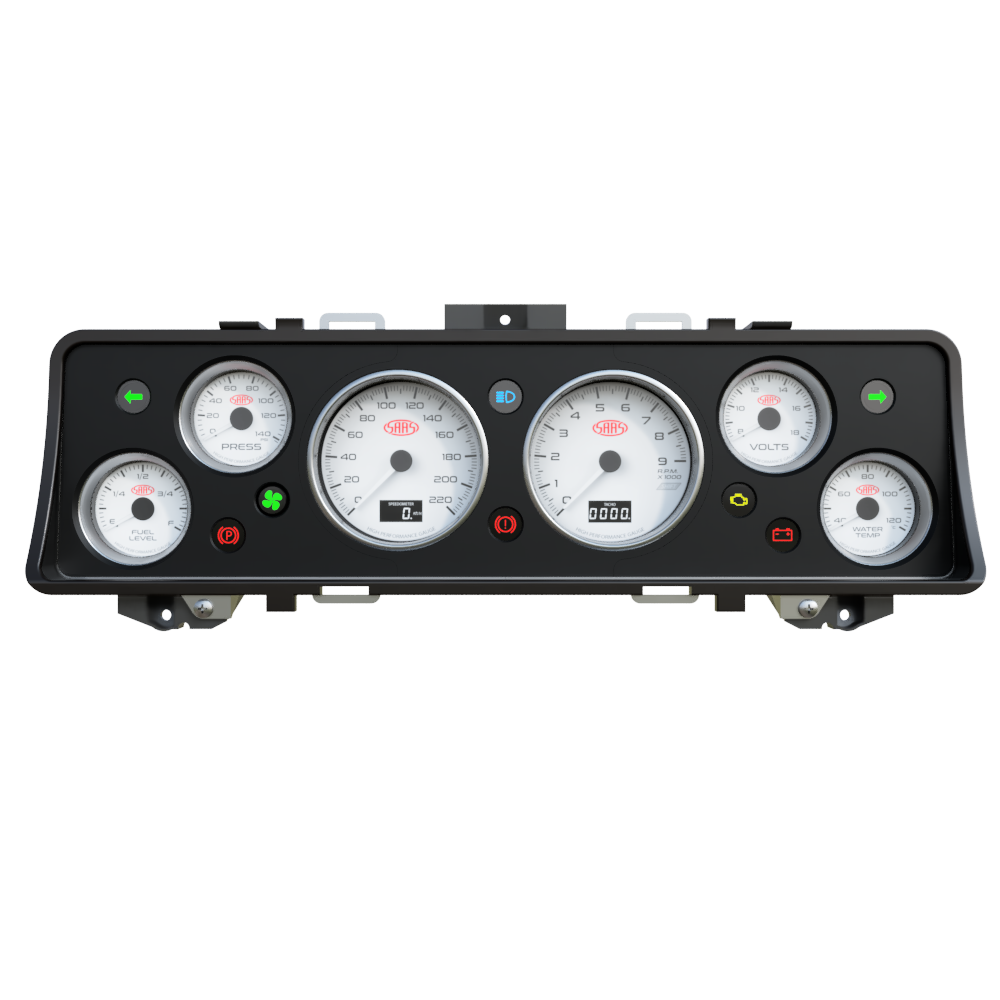

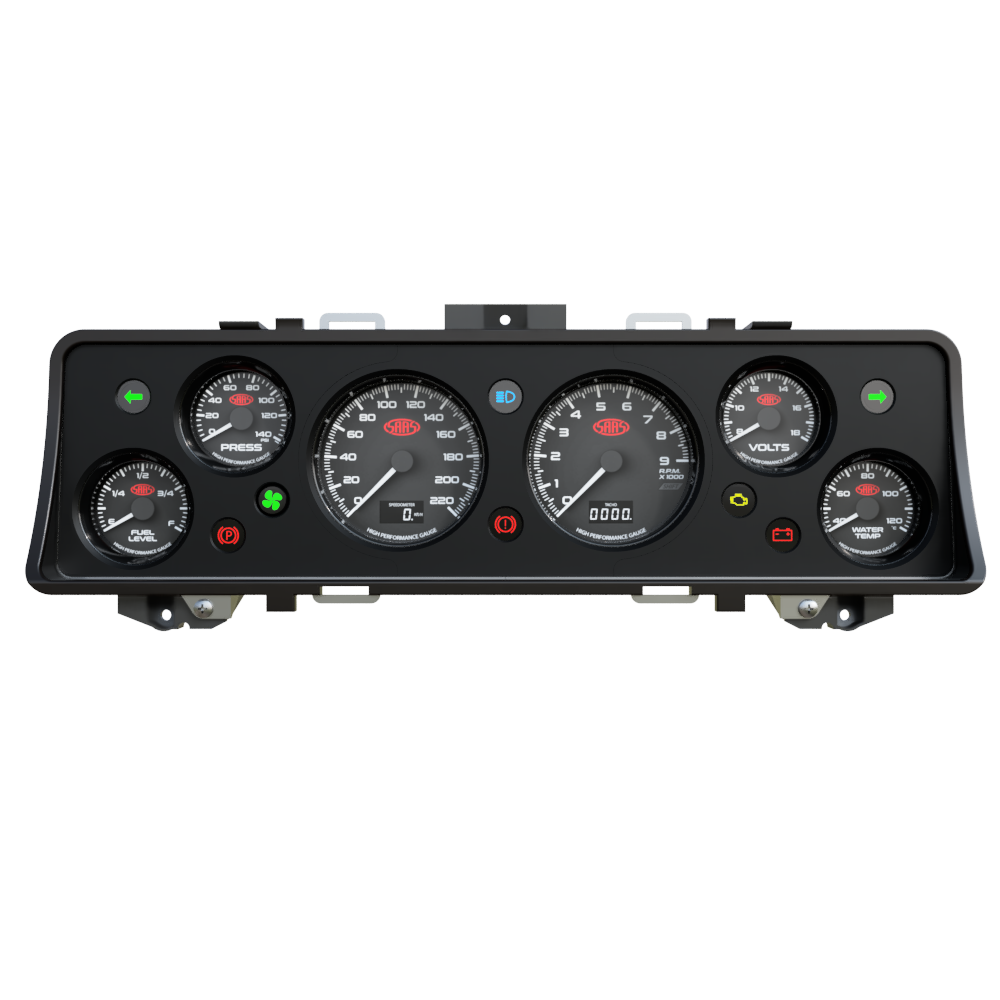

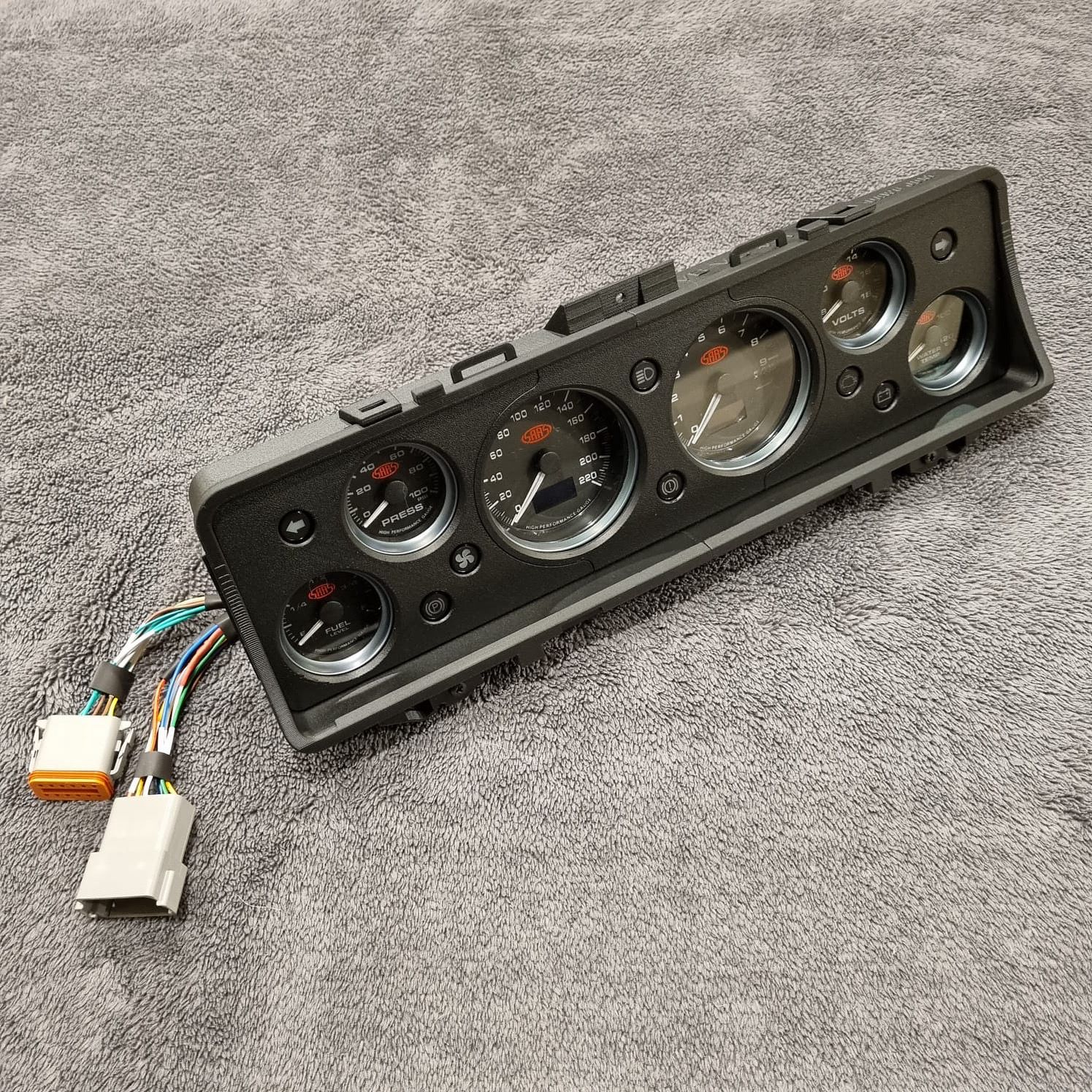

Retrotech Classic Dash Kit 601 with SAAS Muscle Series 1 Gauges – Fits VB/VC/VH Commodore
Retrotech Classic Dash Kit 601 with SAAS Muscle Series 1 Gauges – Fits VB/VC/VH Commodore
Couldn't load pickup availability
Bring Modern Reliability to Your Classic Commodore – Without Losing the Look You Love
Give your VB, VC, or VH Commodore the upgrade it deserves with the Retrotech Classic Dash 601 Complete Kit by Emdawg JDM. Designed in-house and proudly manufactured in Australia, this kit brings modern precision and strength to your classic ride — while keeping that iconic OEM-inspired style.
✅ Vehicle Fitment
-
Fits VB, VC, VH Commodore (1978–1984)
-
No cutting or drilling required
-
Plug and Play
✅ Precision-Engineered Performance:
-
Manufactured with durable PETG-CF via high-quality 3D printing and laser cutting
-
Reinforced with a zinc-coated steel mounting plate for maximum strength
-
Fully pre-wired and ready to plug and play (minor final wiring required)

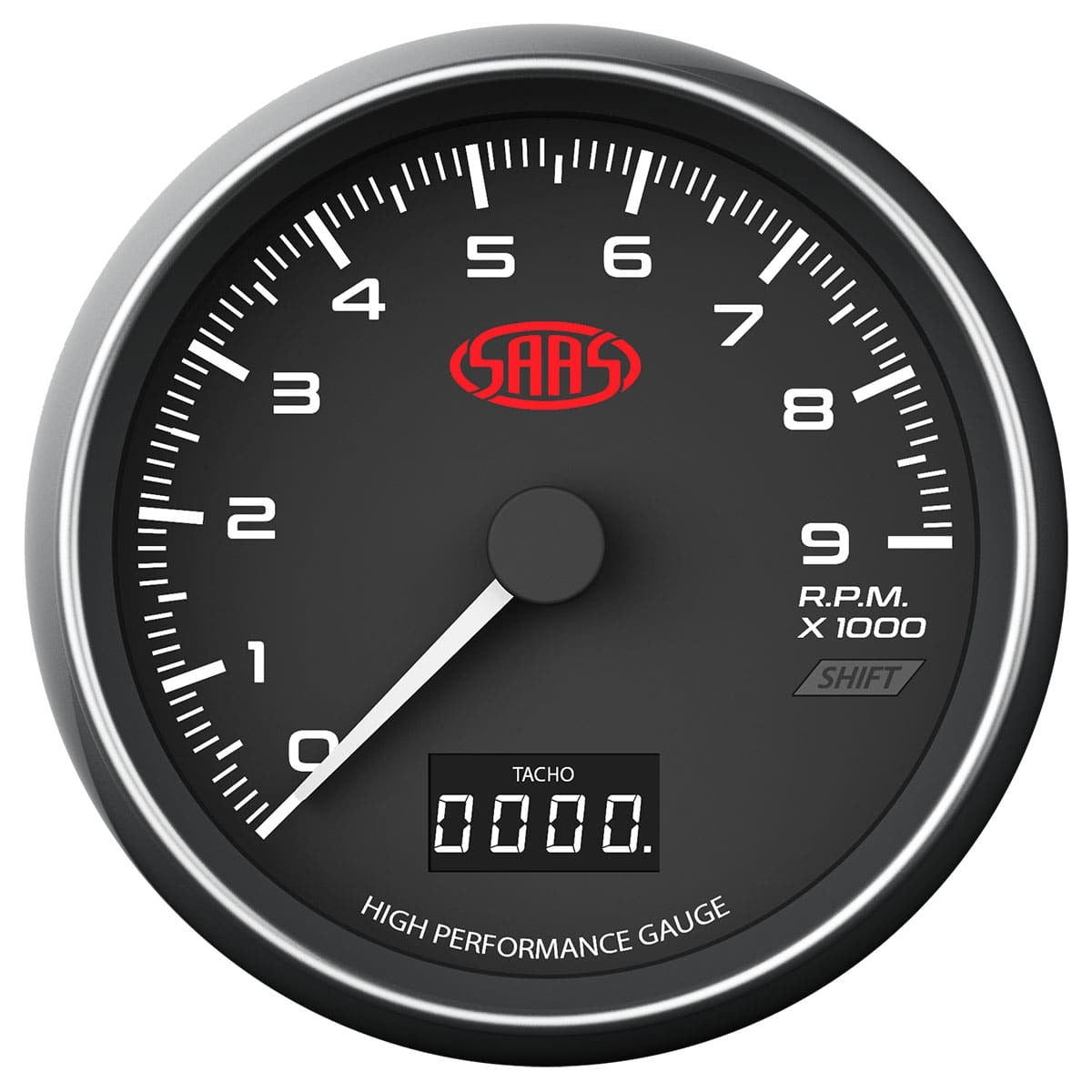

✅ SAAS Muscle Series 1 Gauges Included:
-

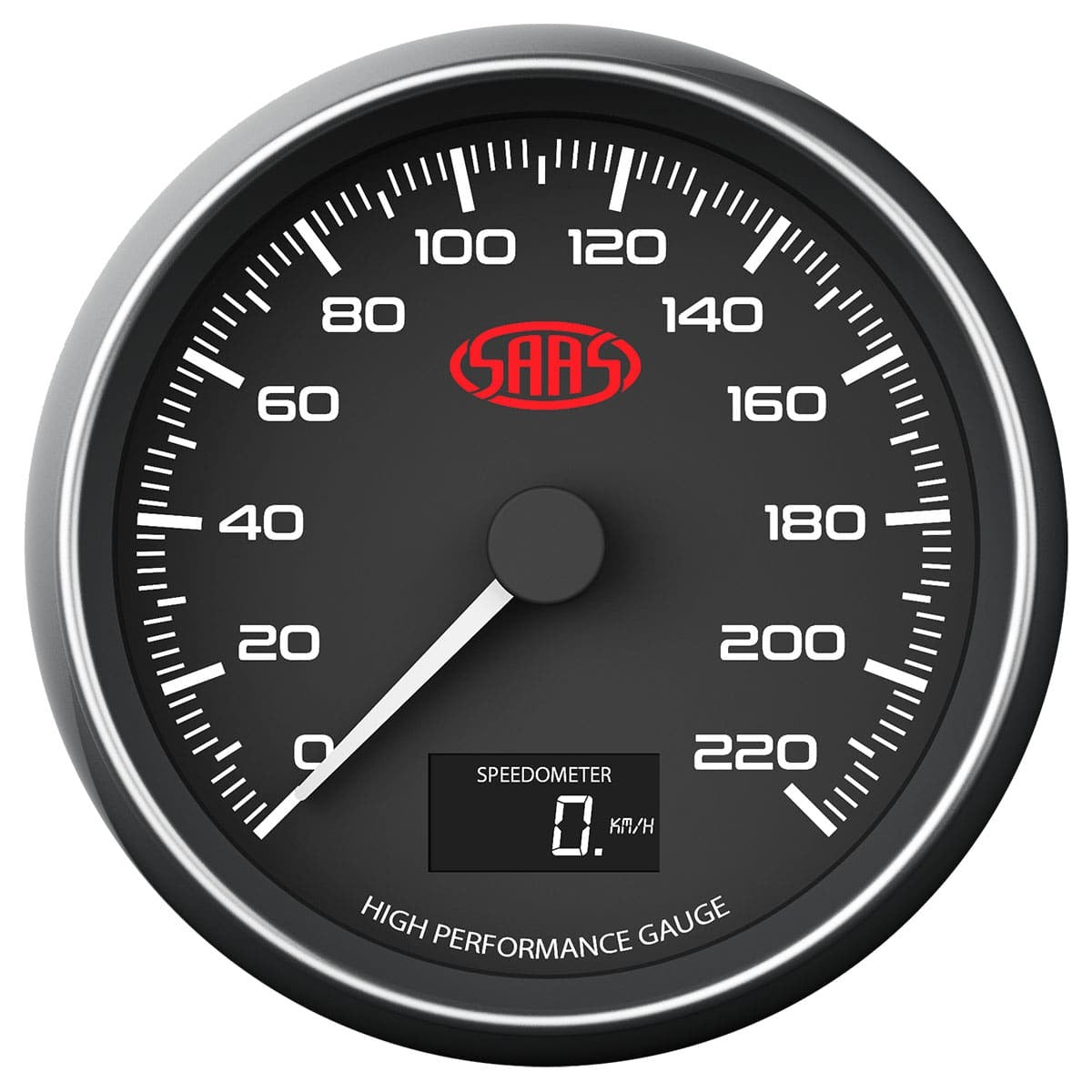

Modern stepper motor technology for ultra-accurate readings
-
Pre-installed and wired LED pilot lights
-
Oil pressure, tachometer, and essential vitals – all ready to go
🧰 Muscle Series 1 Gauge Features:
-
Multifunction settings for odometer, shift light, over-speed warning, low fuel alert, and more
-
Adjustable needle viewing angle for precise readings from your driving position
-
4-color LED backlighting: red, green, blue, and white
-
Speedo and Tach gauges feature 5 dimming levels, independently adjustable for day and night modes
-
Includes sensors for oil pressure and water temperature
-
Compatible with pulse-rate speed and tach signal inputs
-
Speedo and Tach gauges feature remote programming buttons for easy calibration
-
Minor gauges include rear-mounted buttons for setup and adjustments
✅ Easy Install – No Cutting Required:
-
Fits directly into your Commodore dash space
-
Reuse your original clear gauge cover if desired
-
Detailed, easy-to-follow instructions provided
-

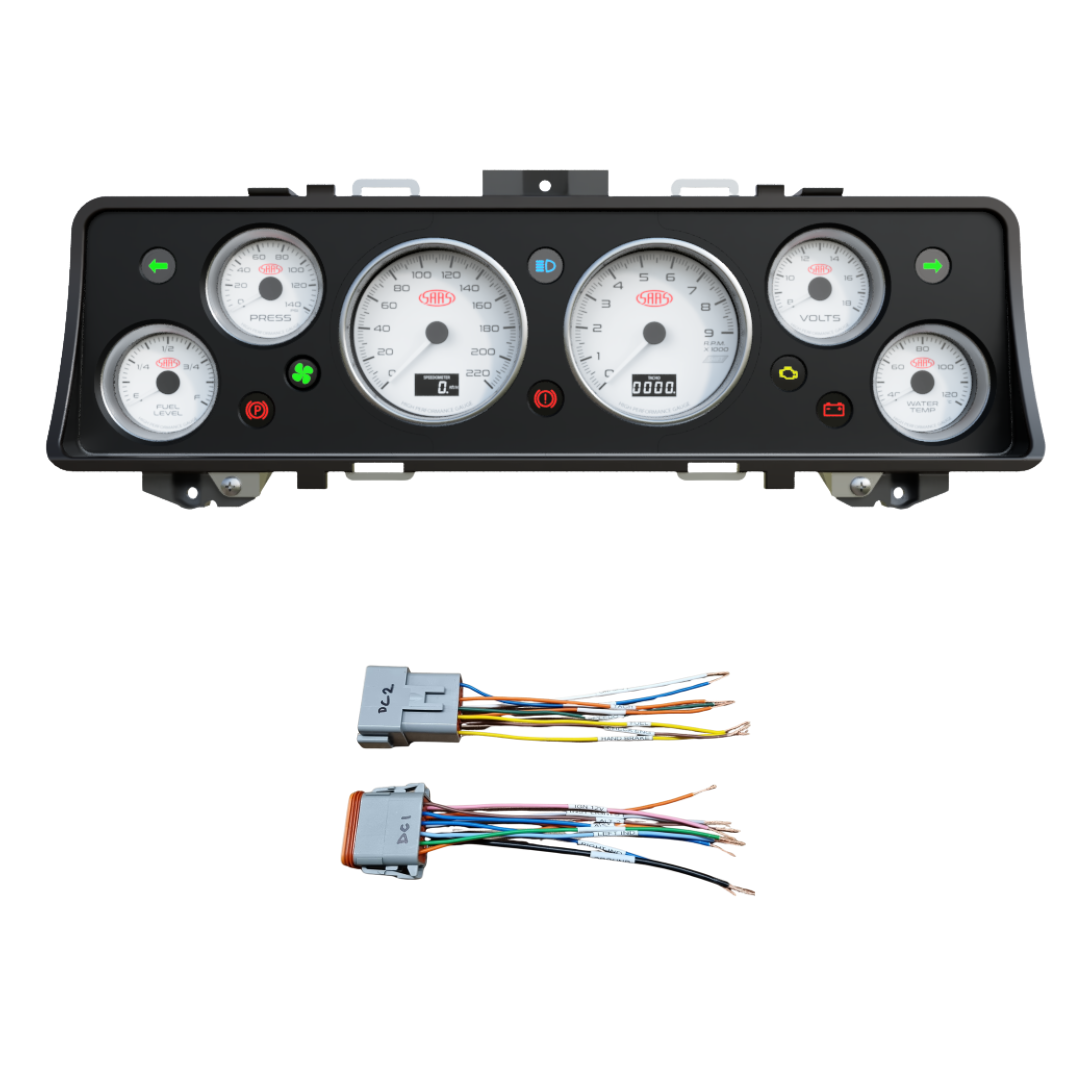

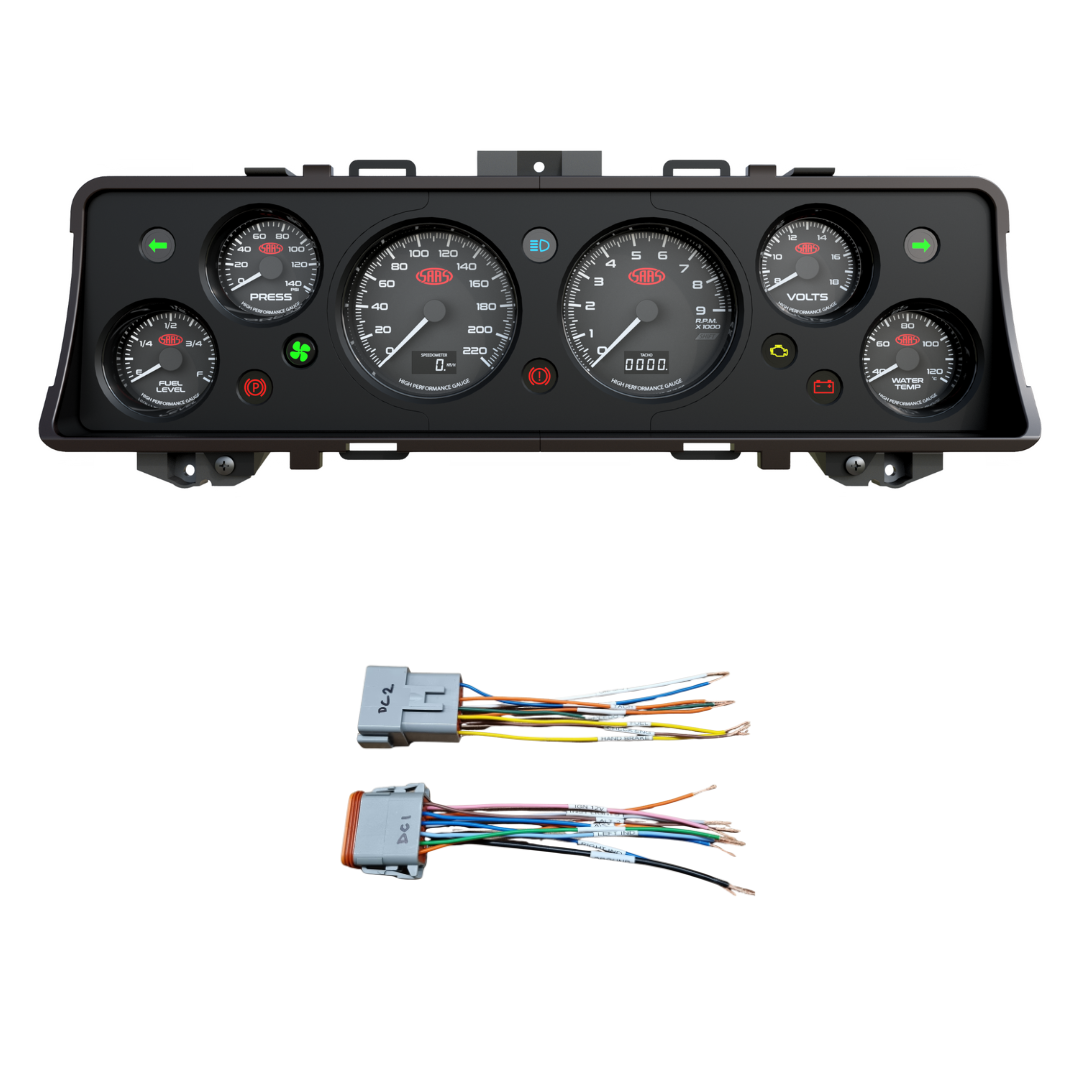

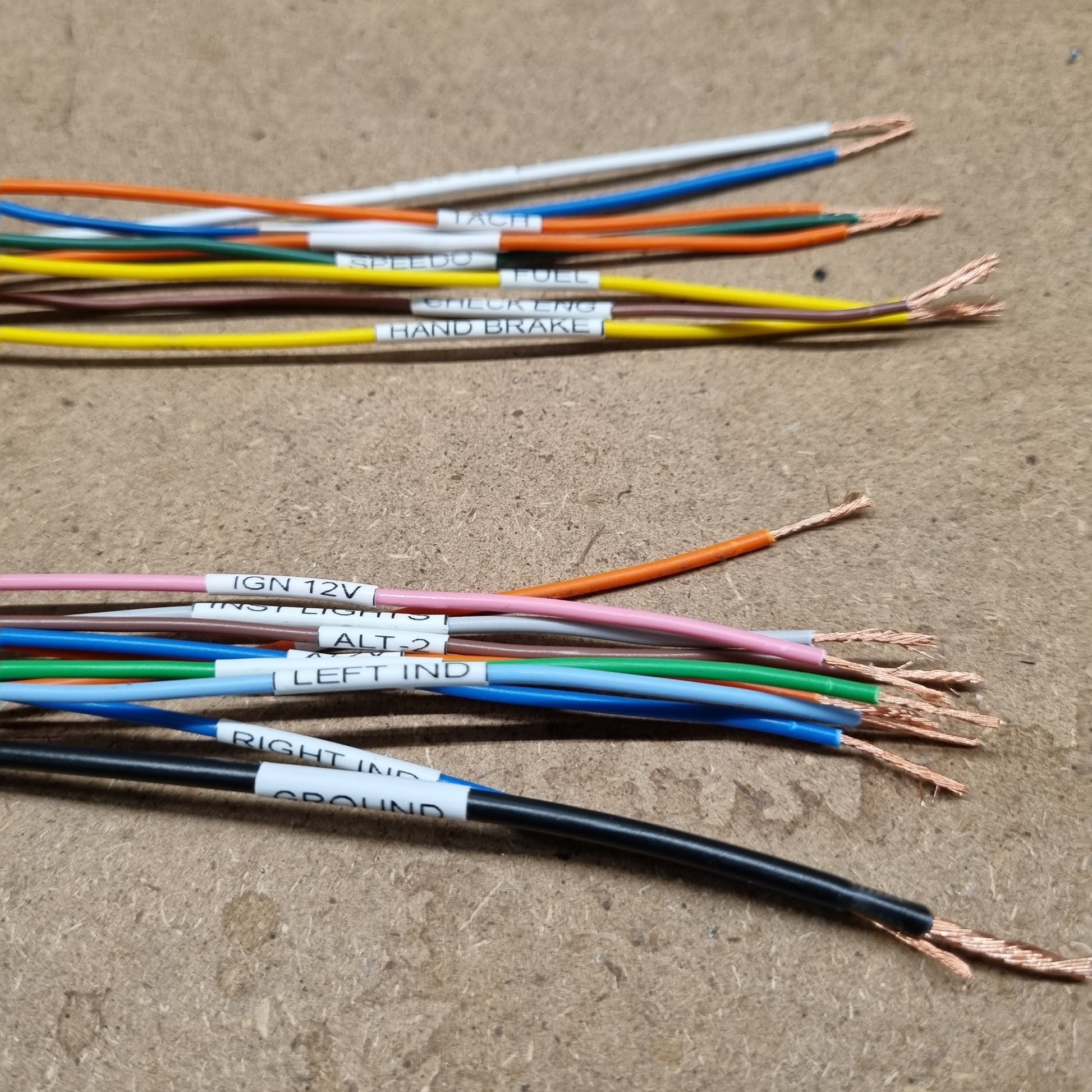

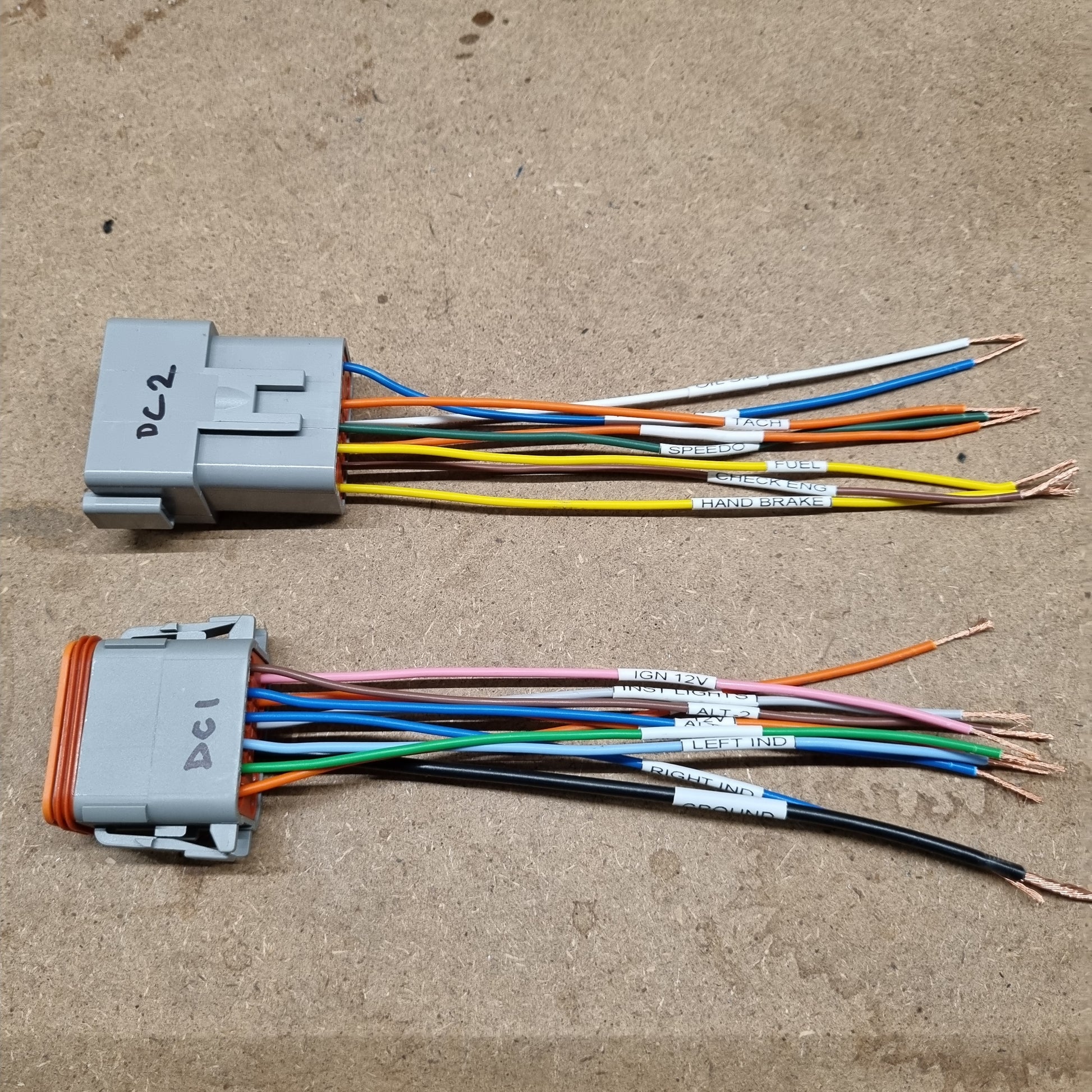

Optional car-side pigtail wiring kit available for those without a Deutsch crimp tool
✅ Speedometer Connection Options – Cable or GPS:
If your transmission currently uses a speedo cable and does not have a Vehicle Speed Sensor (VSS), you’ll need to choose one of the following solutions for your speedometer signal:
-
Install a speedo-to-electronic converter compatible with your transmission
-

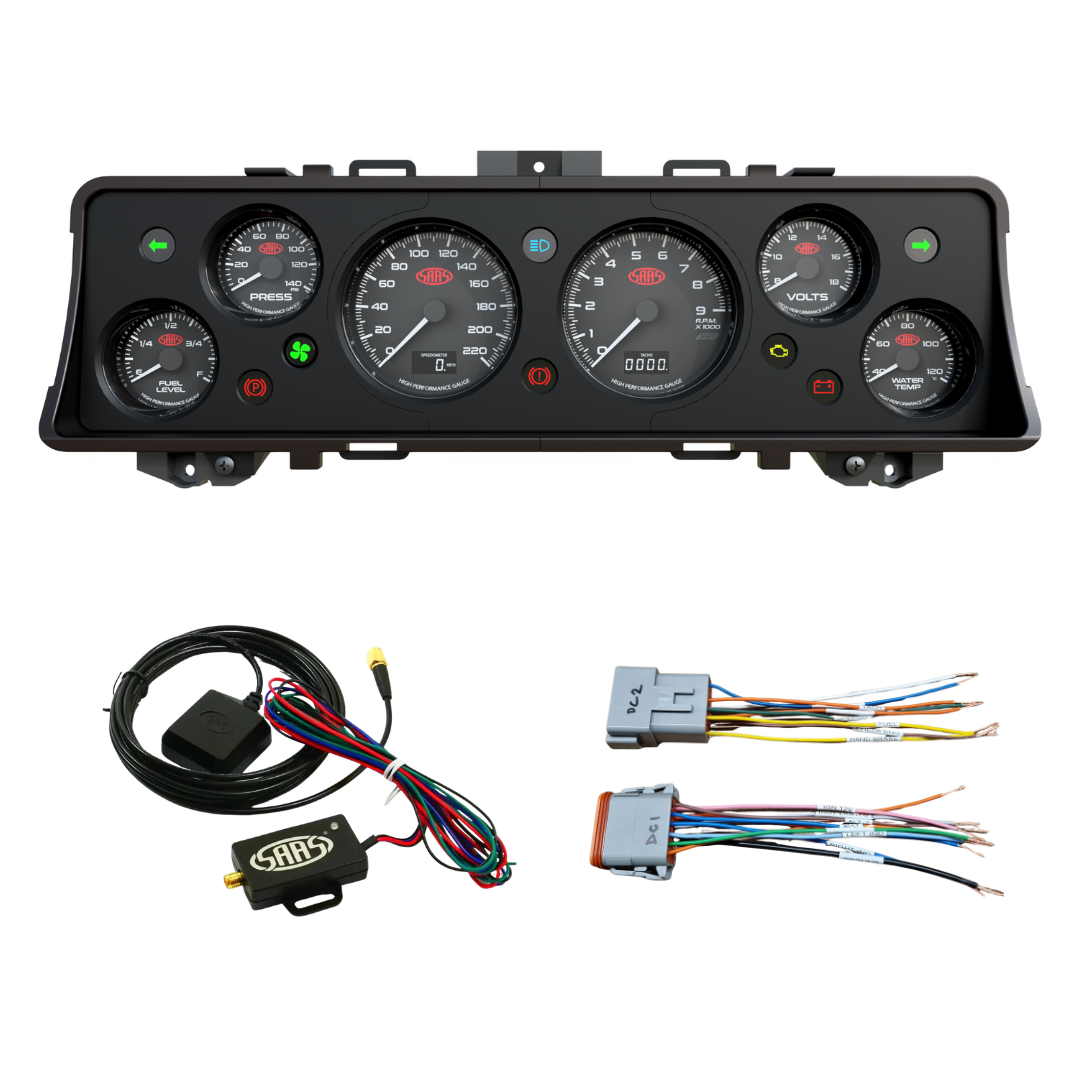

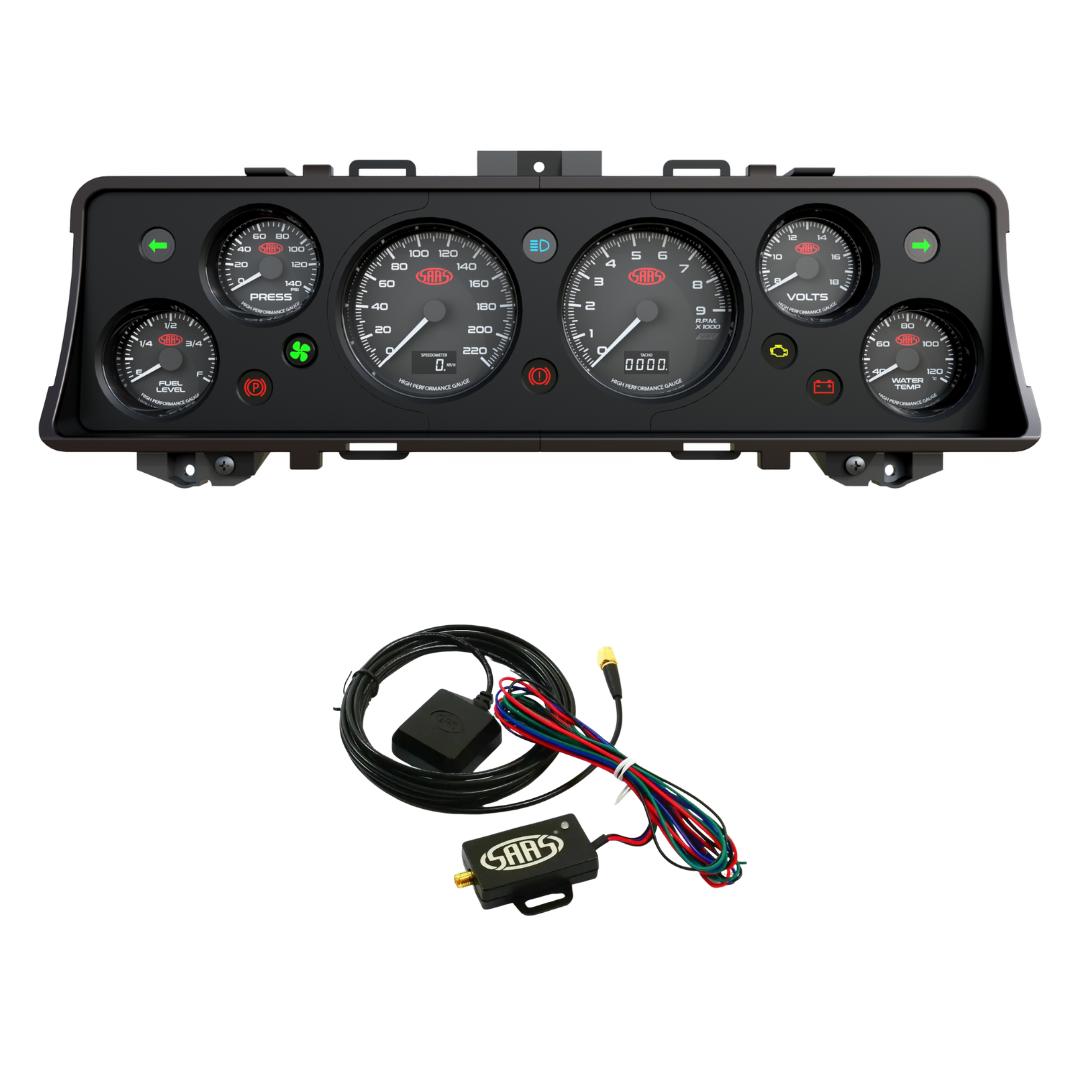

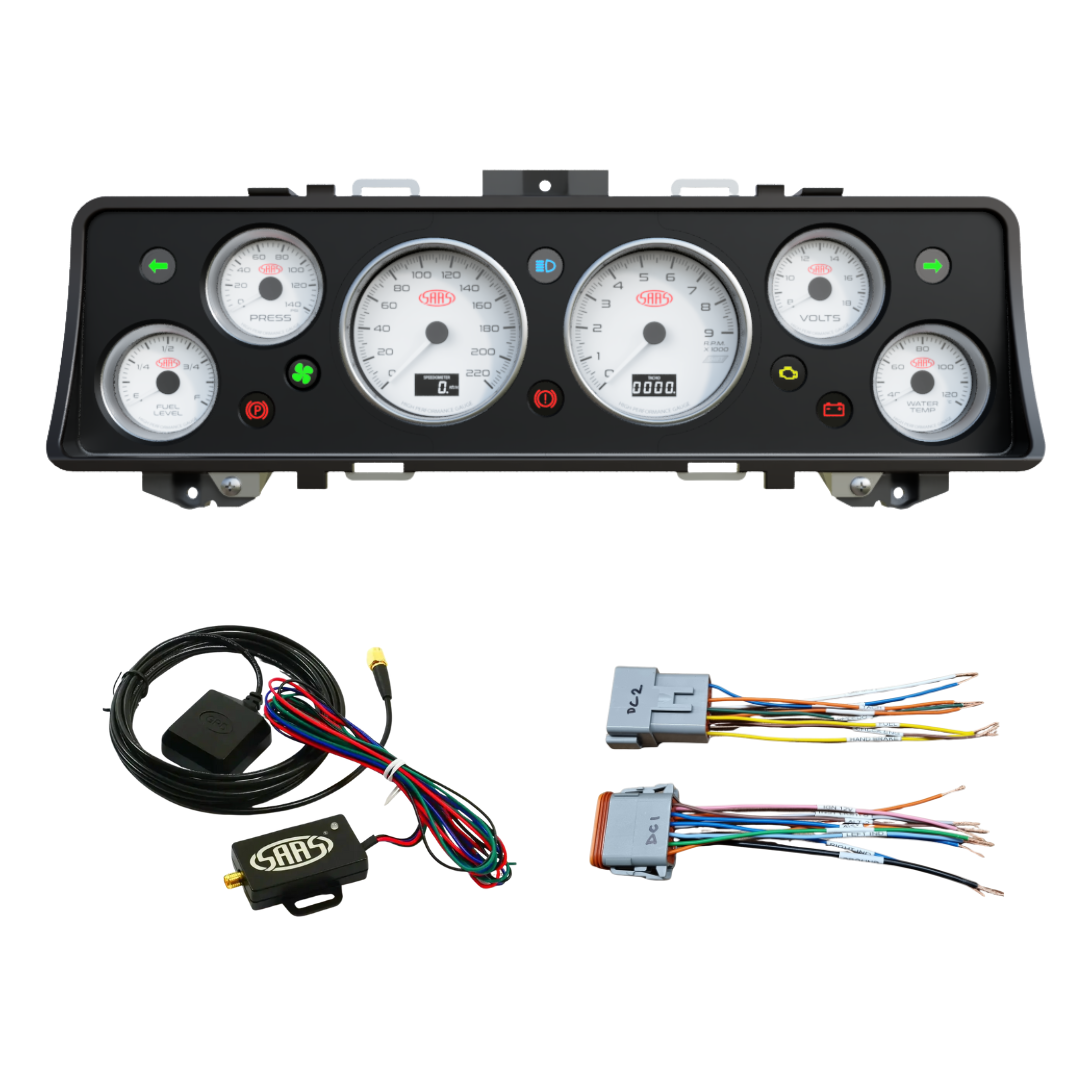

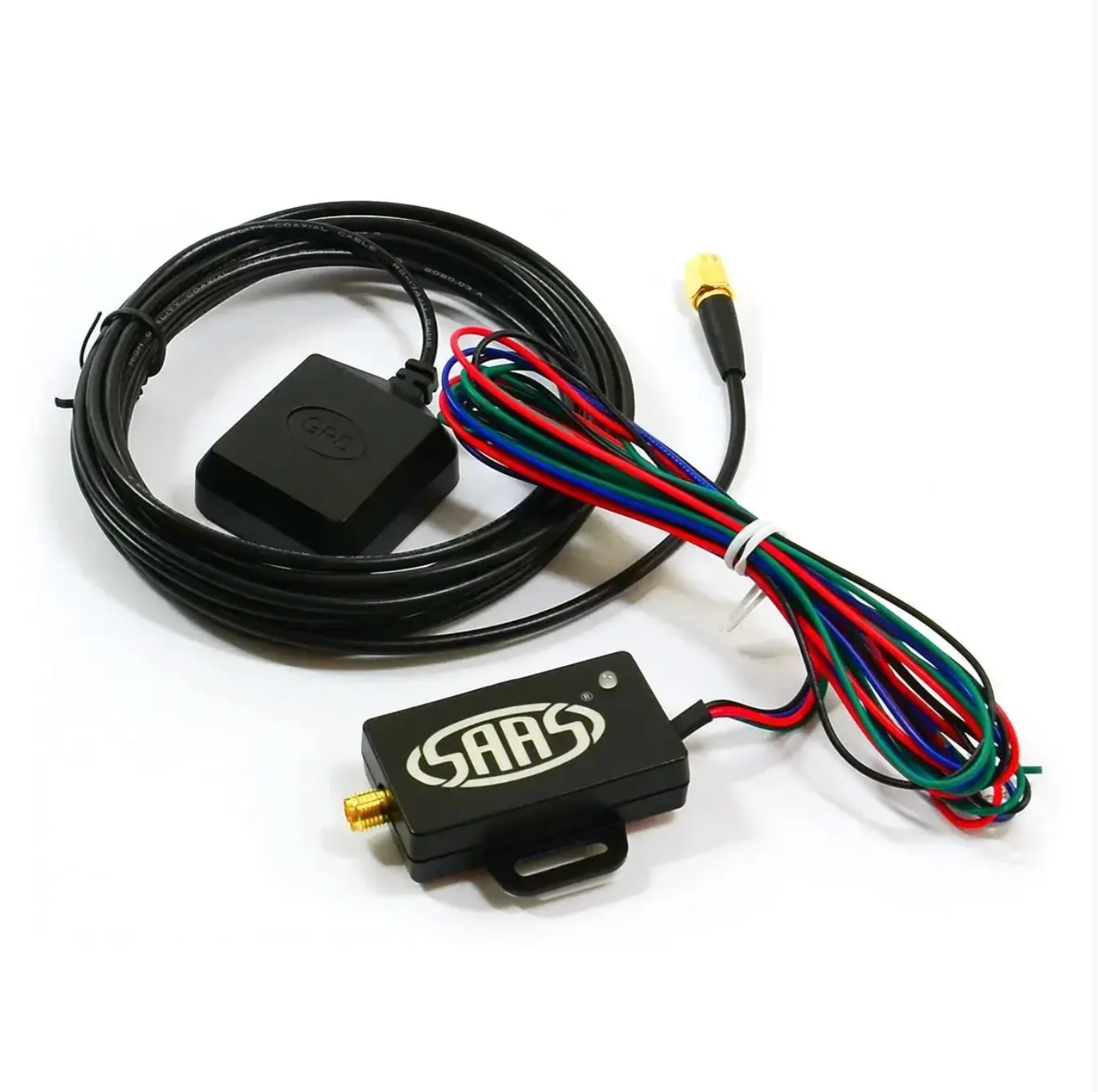

Select the SAAS Speedometer GPS Sensor & Antenna in the options list
The SAAS GPS sender offers a calibration-free setup using data from the global satellite network. It calculates accurate 3D ground speed and sends a pulsed output signal to the speedometer.
⚠️ Note: Check with your local road authorities regarding the use of GPS as your sole speed source.
✅ Engineered for Australian Conditions:
-
Built to meet Australian engineering standards for RWC
-
Perfect for LS swaps, drivetrain upgrades, or fresh builds
Made to Order
Made to Order
Made to order with premium, ready-to-go parts. Please allow up to 20 business days for production and dispatch.
Suits Carbys and ECU variants
Suits Carbys and ECU variants
If your car doesn't have an ECU and doesn't require check engine lights and such, let us know, we can adjust to suit your needs!
Specifications
Specifications
Design:
- In-house design by Emdawg JDM (Australia)
- 3D printed (PETG-CF) + laser cut
- Zinc-coated steel backing plate
Fitment:
- Direct bolt-in for VB, VC, VH Holden Commodore
- No dash cutting required
Gauges:
- SAAS Muscle Series 1
- Stepper motor driven

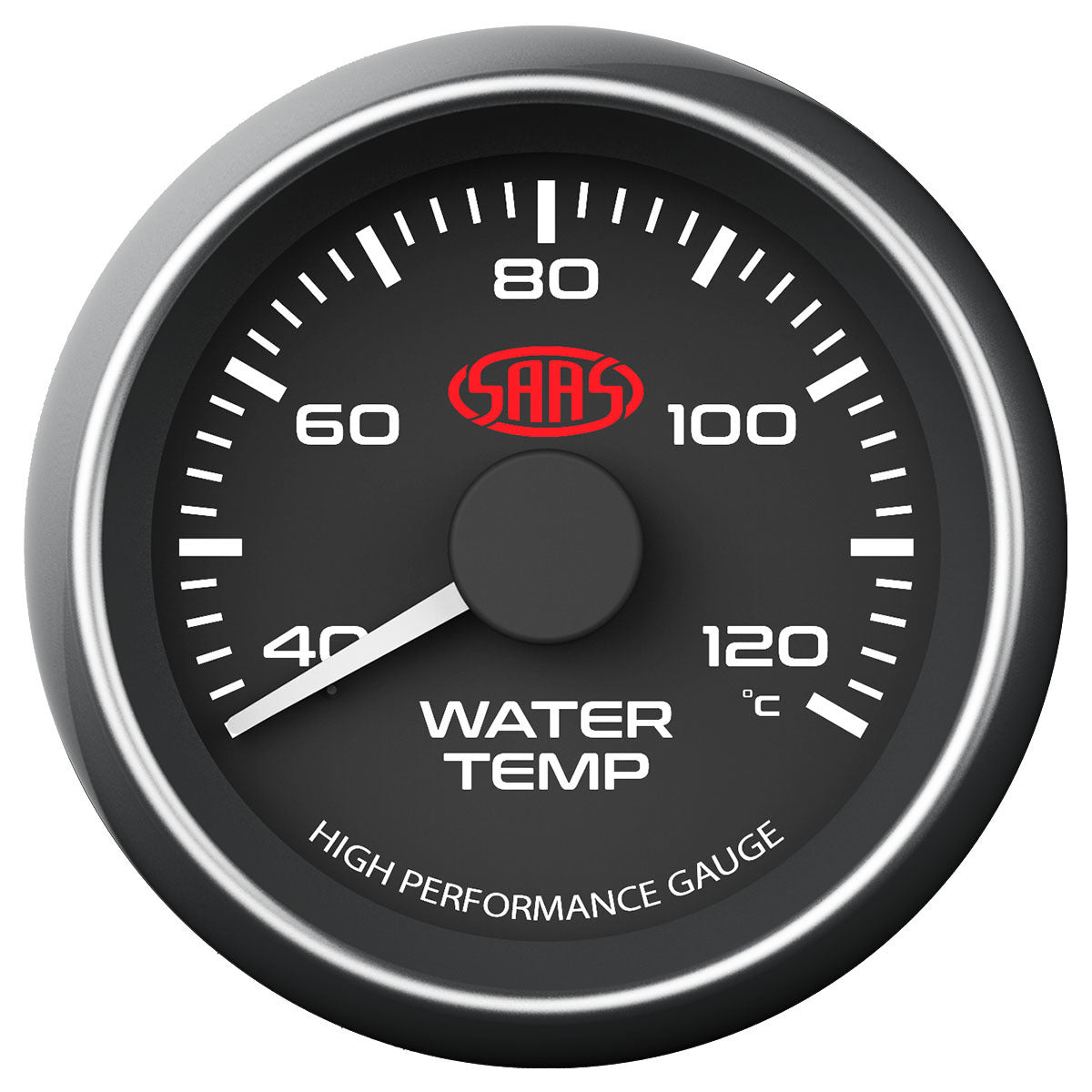

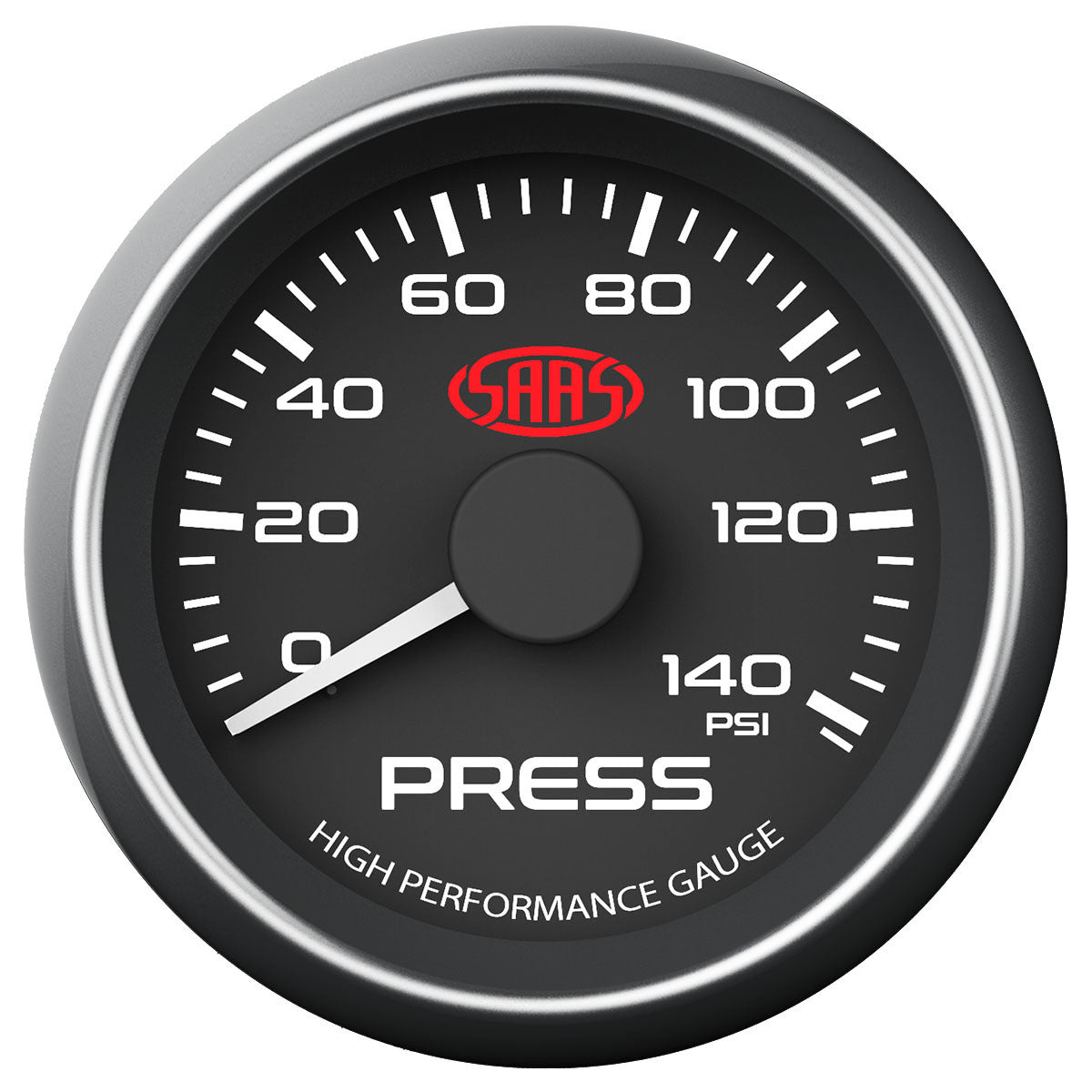

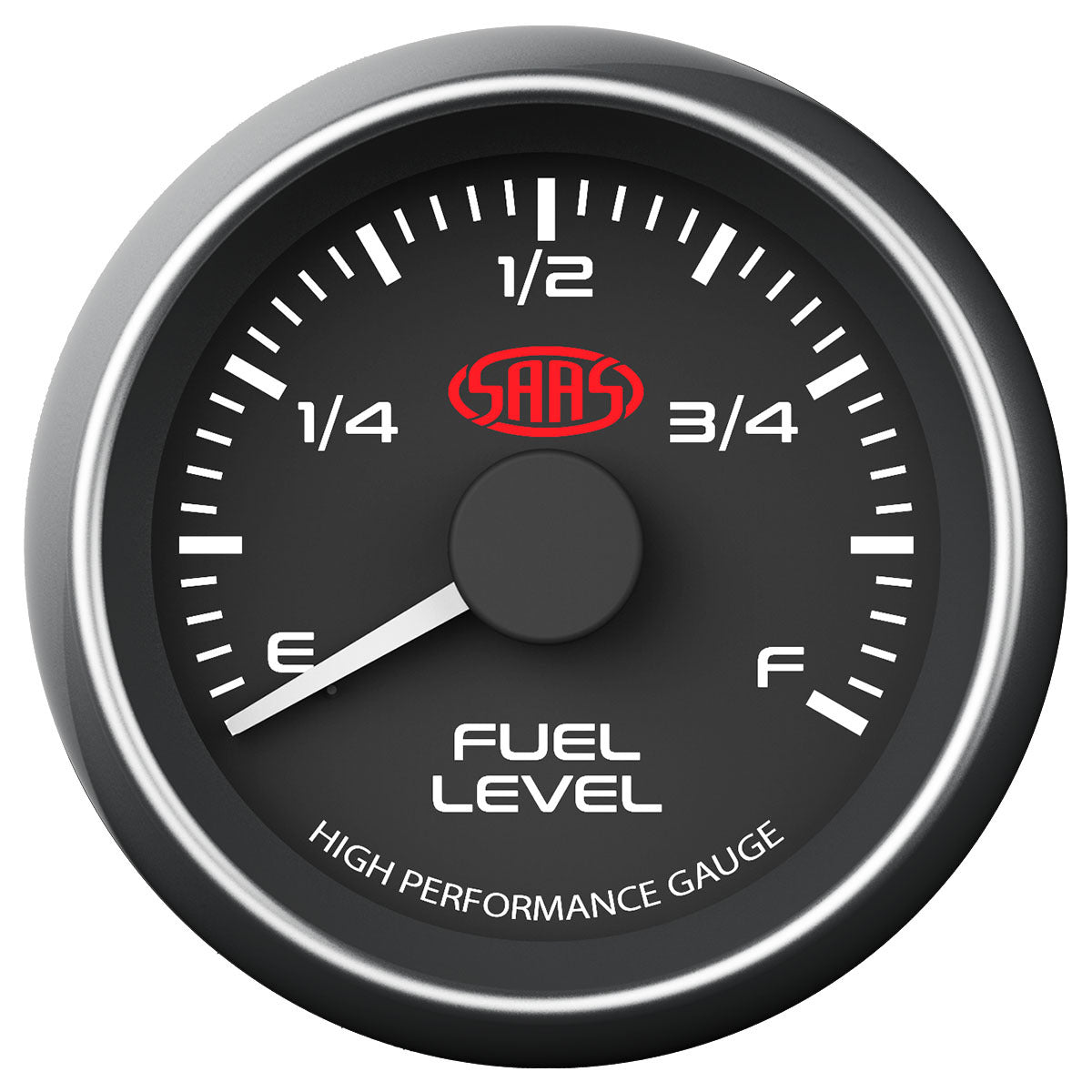

- Speedometer, Tachometer, Oil Pressure, Fuel, Voltage & Water Temp
Wiring:
- Fully pre-wired, plug and play
- Deutsch DT connectors
- Optional pig tail kit available
- Full instructions included
Compliance:
- RWC & engineering inspection friendly
- Made to Australian standards
Finish:

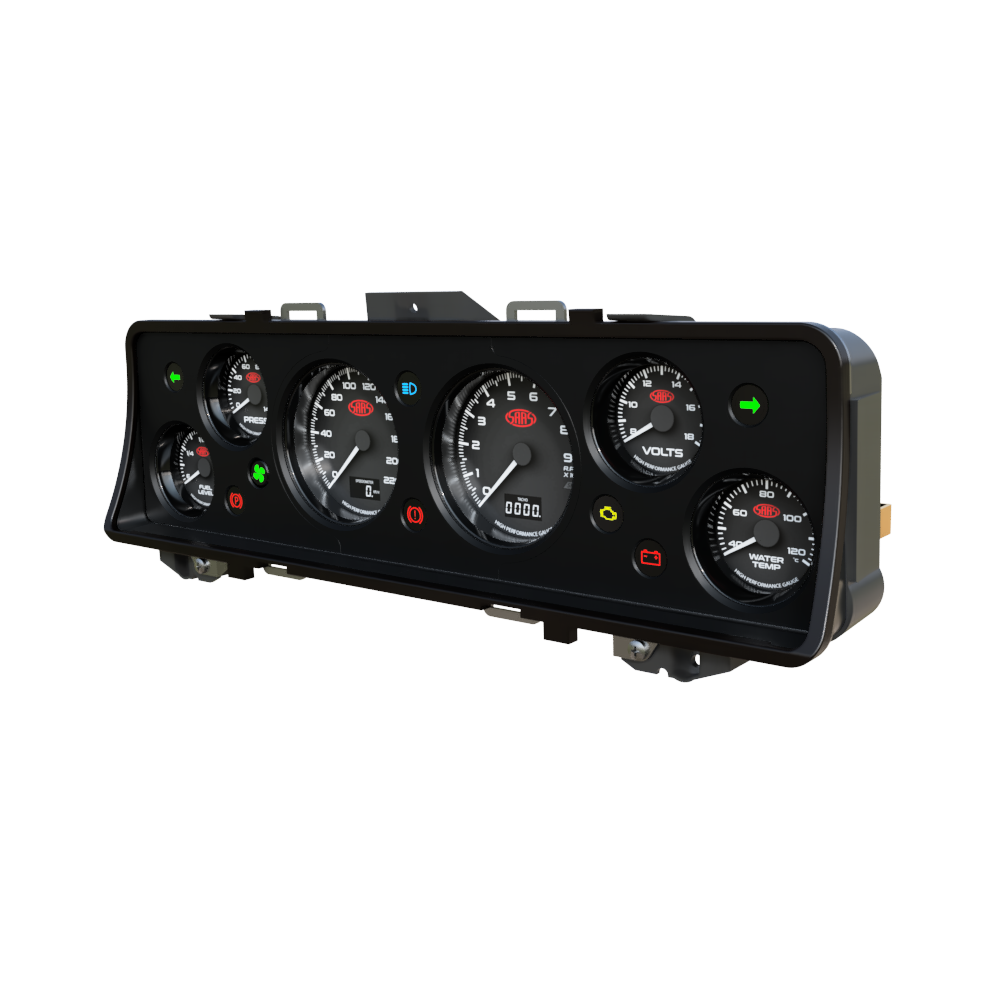

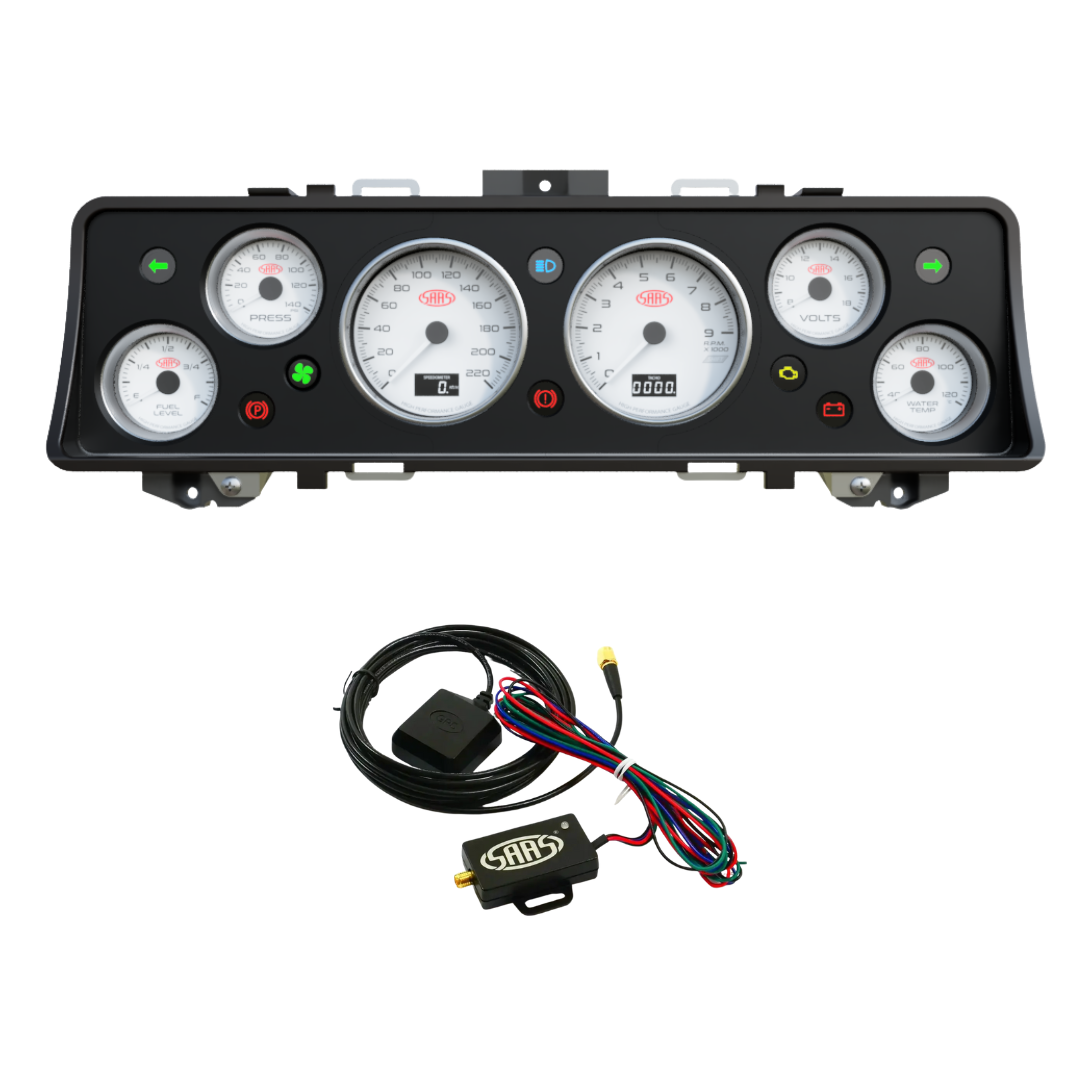

- Textured matte black or white
- LED pilot lights pre-installed
Production:
- Made to order
- Ships in up to 20 business days
Delivery Information
Delivery Information
Made to order – limited production slots available!
Retrotech Classic Dash 601
Engineered for VB/VC/VH Commodores – Plug & Play – RWC Compliant – Australian-Made
Key Features:
- SAAS Muscle Series 1 stepper motor gauges
- 3D printed in PETG-CF + zinc-coated steel plate
- LED pilot lights pre-installed
- Plug & Play wiring (with Deutsch connectors)
- Supports LS engine conversions
- Reuses OEM clear gauge cover
- Full instructions included
Built For:
VB, VC, VH Holden Commodores — ideal for classic restorations or LS swap builds that need modern reliability and a factory-inspired appearance.
Click for Specifications
Construction & Materials
- 3D printed in durable PETG-CF
- Laser-cut finish for precision alignment
- Reinforced with zinc-coated steel mounting plate
Design & Compatibility
- Designed in-house by the Emdawg JDM team
- OEM-style fit for VB, VC, VH Commodores
- Engineered to meet Australian RWC requirements
- Compatible with LS swaps and drivetrain upgrades
Gauges & Electrical
- Includes SAAS Muscle Series 1 Gauges
- Modern stepper motor movement for accuracy
- Pre-wired with LED pilot lights installed
- Plug-and-play ready (with additional wiring to vehicle)
Installation
- No dash cutting required
- Reuse your OEM clear gauge lens
- Includes instructions for basic wiring
- Optional pigtail wiring kit available
Production & Shipping
- Made to order using ready-to-go components
- Lead time: Up to 20 business days
- Australian-made and assembled
Customer Reviews

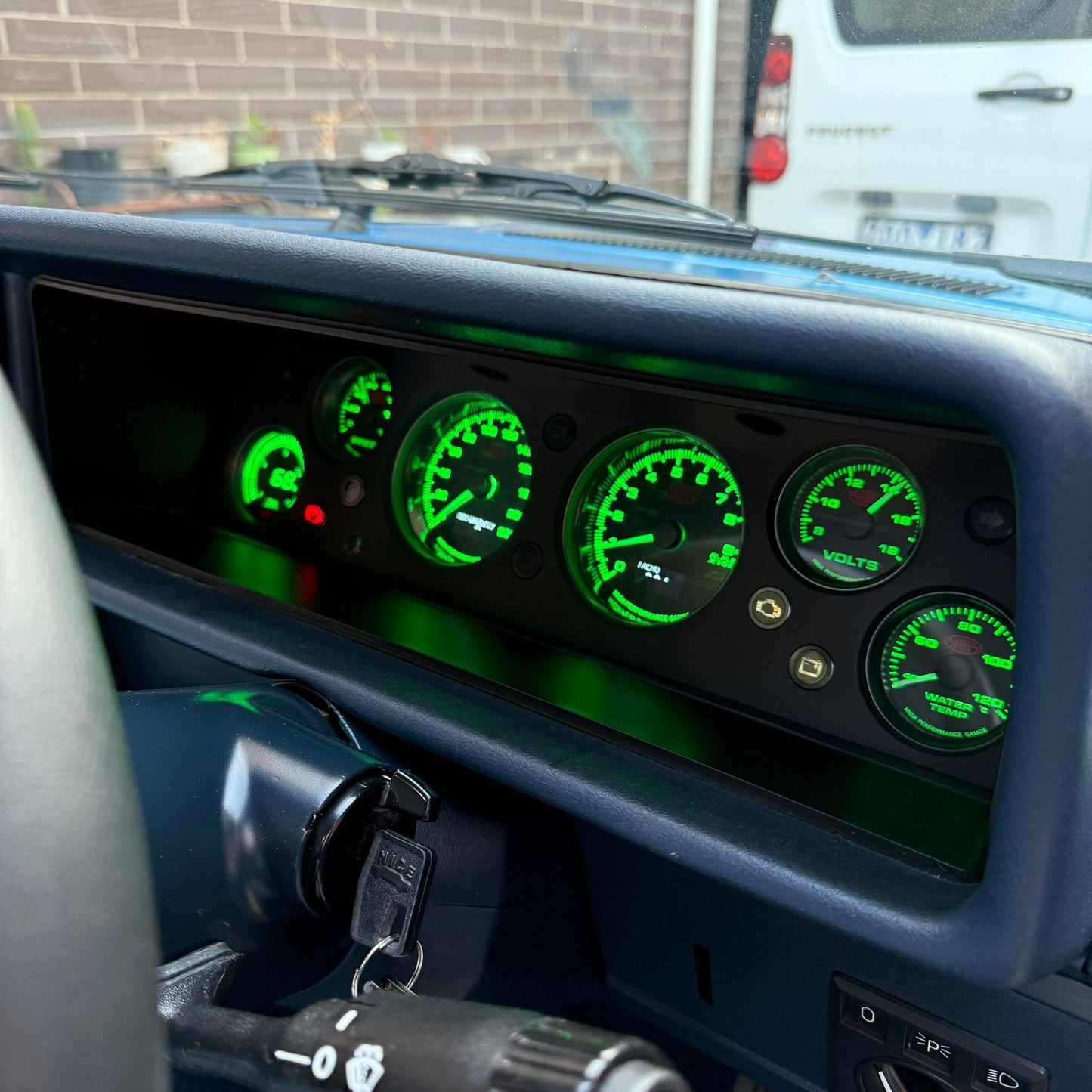

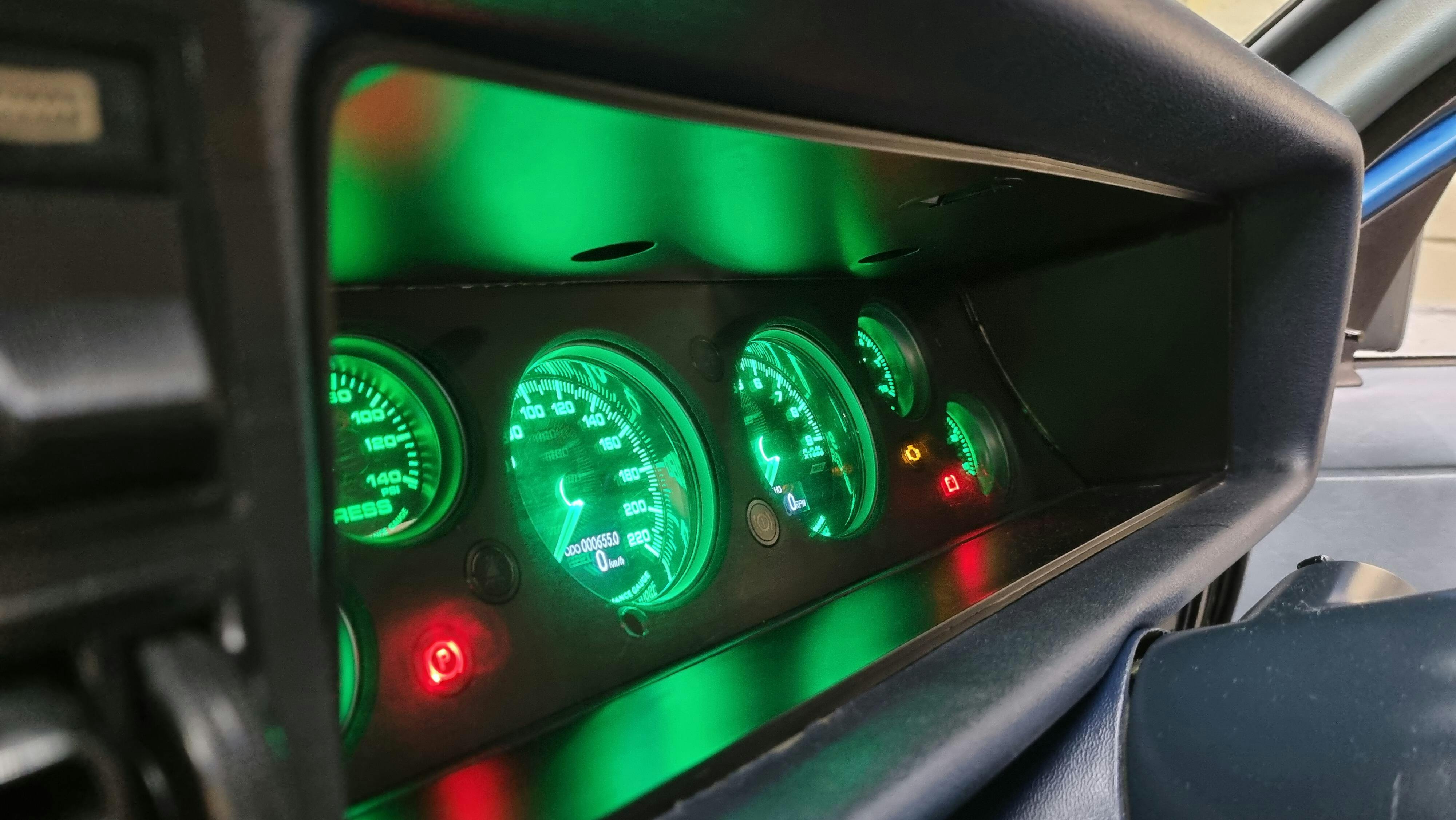

Great dash! It went in like the original without any cutting or drilling. Looks great in the car! The instructions made the wiring pretty straight forward too.
I’m so happy I came across this dash setup. This replaced my sped hut setup and freed up space. Old school look and more importantly the exact same size as the original. I m not a mechanic or auto sparkie, however these are easy to wire in and they fit perfectly. Easy to follow instructions and excellent support .
Amazing quality, great service
